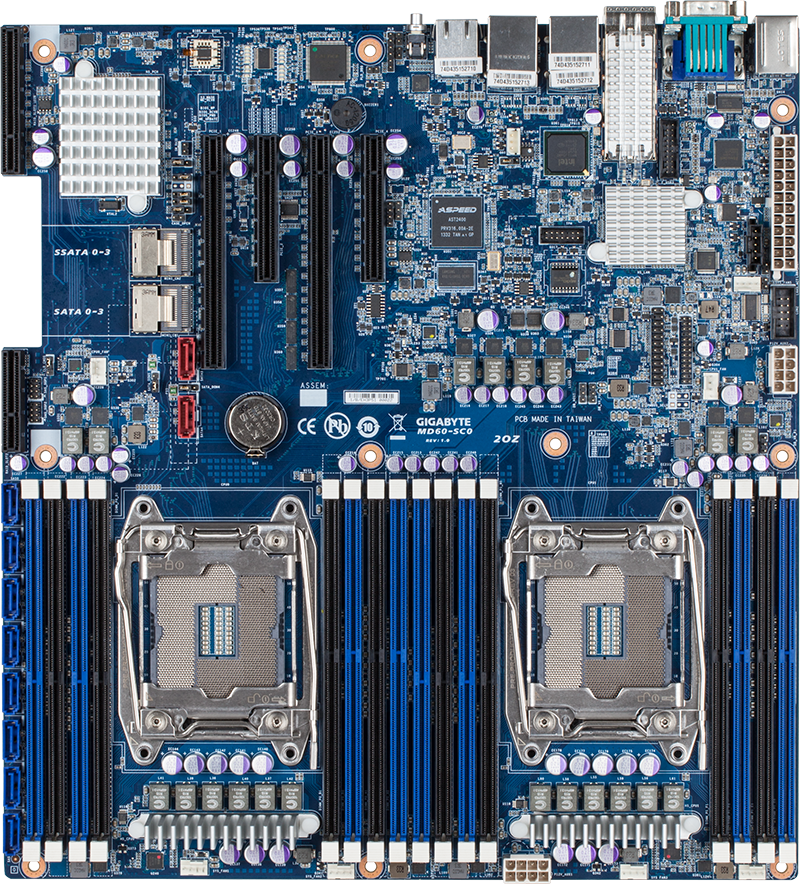

Gigabyte MD60-SC0 Motherboard

E-ATX / SSI EEB
305W x 330D (mm)

Intel® Xeon® E5-2600 V3 processors
Intel® Xeon® E5-2600 V4 processors
NOTE: If only 1 CPU is installed, some PCIe, memory, network or I/O functions might be unavailable.

2 x LGA 2011-3
Mounting pitch: narrow ILM (56x94mm)
Recommended cooling device dimension: 70x106mm
Max. length of M4 screw threads: 3.7mm
Screws longer than 3.7mm might damage the motherboard

Intel® C612

16 x DIMM slots
DDR4 memory supported only
Quad channel memory architecture
ECC RDIMM / LRDIMM modules supported
Single and dual rank RDIMM modules up to 32GB supported
3DS LRDIMM modules up to 128GB supported
1.2V modules: 1600/1866/2133/2400 MHz

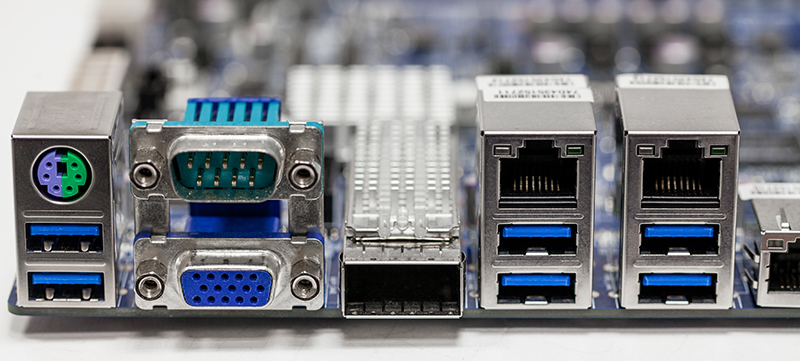

1 x QSFP+ LAN port (Intel® 82599ES) supporting dual 10GbE SFP+ output via splitter cable
1 x 40GbE QSFP+ LAN port (Intel® XL710-AM1) (in option)
2 x GbE LAN ports (Intel® I350-AM2)
1 x 10/100/1000 management LAN

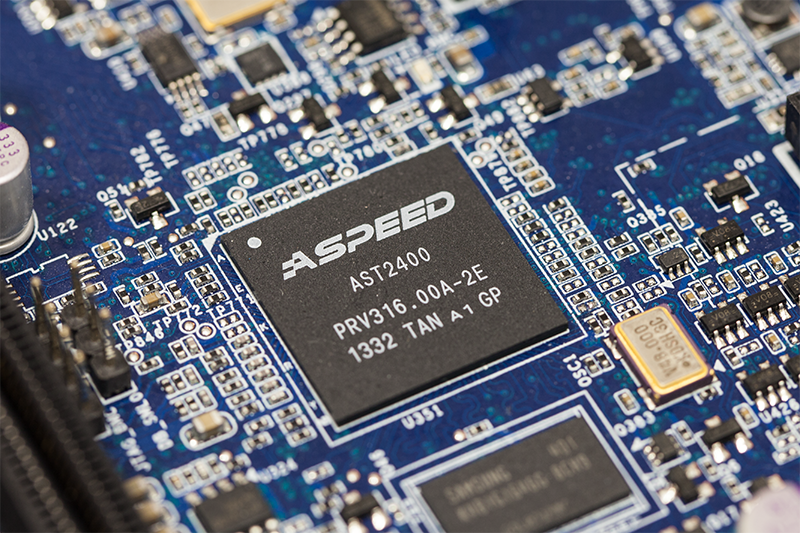

Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

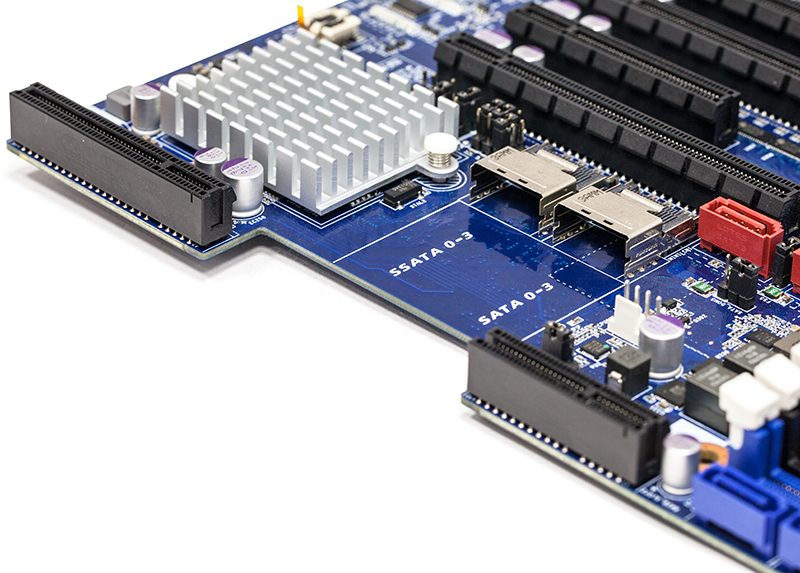

8 x SAS 6Gb/s ports (disabled, can be enabled with the CRA220-8 add-on card)

2 x Mini-SAS (for 8 x SATA III 6Gb/s ports)
2 x SATA III 6Gb/s ports supporting SATA DOM

Intel® SATA RAID 0/1/10/5

2 x PCIe x16 (Gen3 x16 bus) slots
1 x PCIe x8 (Gen3 x8 bus) slot
1 x PCIe mezzanine type T (Gen3 x8 bus) slot

or (via PCIe switch):

1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x16 (Gen3 x8 bus) slot
2 x PCIe x8 (Gen3 x8 bus) slots
1 x PCIe mezzanine type T (Gen3 x8 bus) slot

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
8 x SAS 6Gb/s ports
2 x SATA III 6Gb/s ports
2 x Mini-SAS cable connectors
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x Serial header
1 x TPM header
1 x Front panel header
2 x LAN activity LED headers
1 x HDD back plane board header
2 x SAS SGPIO headers
1 x Chassis intrusion header
1 x Management LAN port link LED header
1 x Management LAN port active LED header
1 x PMBus connector
1 x IPMB connector
2 x SATA DOM support jumpers
1 x Clear CMOS jumper
1 x ME update jumper
1 x Clearing supervisor password jumper
1 x BIOS recovery jumper
1 x ME recovery jumper
1 x S3 power on select jumper
1 x Intel / LSI software RAID key jumper
1 x Force to stop FRB timer jumper

6 x USB 3.0
1 x PS/2
1 x VGA
1 x Serial
1 x QSFP+
3 x RJ45
1 x ID button with LED

1 x TPM header

Windows Server 2008 R2 (x64)
Windows Server 2012 (x64)
Windows Server 2012 R2 (x64)
Red Hat Enterprise Linux 6.7 (x86/x64)
Red Hat Enterprise Linux 7.2 (x64)
SUSE Linux Enterprise Server 11.4 (x86/x64)
SUSE Linux Enterprise Server 12 (x64)
Ubuntu 12.04 LTS (x86/x64)
Ubuntu 14.04 LTS (x86/x64)
VMware ESXi 5.1 U2
VMware ESXi 5.5 U2
VMware ESXi 6.0 U1

Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Network settings
Network security settings
Users control
Services settings
IPMI settings
Sessions control
LDAP settings
Power control
Voltages, fans and temperatures monitoring
System event log
Events management (platform events, trap settings, email settings)
Serial Over LAN
vKVM & vMedia (launch, configuration)

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
ŠNon-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1 x MD60-SC0
1 x Driver CD
1 x I/O shield
1 x User manual
2 x SATA III 6Gb/s cables
Box dimensions: 409 x 355 x 78 mm

9MD60SC0MR-00
